New Silencer Design Featuring: Titanium silencer body with Carbon Fiber End Cap and titanium exhaust tubing. Kit includes a billet machine mounting bracket to insure your exhaust stays in place! This design not only streamlines looks of your side by side but it saves weight. Suggested tuning options are Flash Tune (FTEcu) kits found in separate listing (see below for kit options in the suggested items section) . Maps for all Graves systems are available inside the FTEcu software > third party > Graves Motorsports > database.
The Goal of Graves when designing this full Titanium YXZ exhaust system was to provide the best performing, highest quality product on the market. We did not compromise in the development of this system. Material diameters, lengths, the silencer core size and length are optimized for maximum power output throughout the throttle and RPM range. EPA quiet core sold separately.

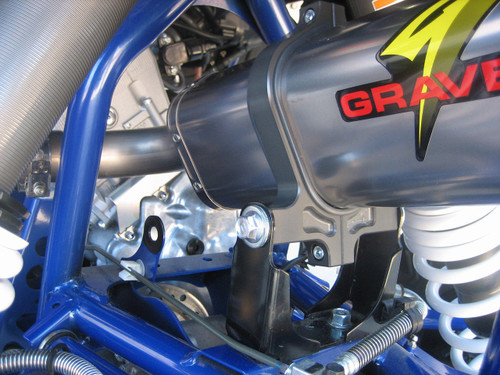

The silencer is one piece with the tail pipe welded to a Titanium entrance cap for a perfect fit every time. The silencer is supported with an Aluminum bracket machined 6061 T651 and hard anodized for long life. The silencer sleeve is made of Titanium that attaches to the carbon end cap with stainless aircraft grade rivets and Titanium silencer bands. The inter core tube is made of stainless that slips over the entrance and into the exit cap that is a covered with a Carbon Fiber beauty cover. Sound reducing insert with spark arrestor (not included available separately).
This system performs like it looks and looks like it performs. (11/10ths and maximum effort every time from Graves)- Chuck Graves
Installation instructions from the tabs listed above.
Exhaust System Saves 12.2 lbs. over stock setup.
83 db at Idle / 96.5 db at 4000 rpm
Fitment: Yamaha YXZ 1000r 2016 - 2023
Easy install, great idle and cruising sound, best throttle sound on the market
Posted by Rs on Jul 29th 2020
I thought it would be louder at idle or cruising but it's welcoming that it's not that loud. Till you get on the throttle and that's where the sweet sound comes.
Best sound on the market wide open throttle.
